Available now
Explomet™ 4
The next generation V.O.D. and detonator delay instrument from Kontinitro.
Built upon decades of experience in high-precision measurement, the Explomet™ 4 combines the proven strengths of the Explomet™ 2T+ and the Explomet™ 3 with a major new feature: an integrated Detomet 4 mode for detonator delay measurement.
25 years after the original Detomet, Kontinitro has redesigned the concept from the ground up and integrated it into a single, modern platform. Compact, powerful, intuitive and exceptionally precise, the Explomet™ 4 is the most advanced instrument ever developed by the company since the first Explomet of the late 1970s.
- Integrated Detomet 4 mode for detonator delay measurement
- Portable (6 optical inputs) or suitcase (8 optical inputs) format
- Time resolution down to 0.01 microsecond
- Slow-combustion measurement up to 3 minutes
- CSV storage on SD card with internal backup
- User interface in 6 langages
Key characteristics
- Time resolution
- 0.01 µs
- Optical inputs
- 6 (portable) / 8 (suitcase)
- Detonator channels
- 5 independent counters
- Slow combustion
- up to 180 s
- Storage
- SD card, CSV + internal backup
- Interface languages
- EN, FR, ES, DE, IT, PT, PL
- Trigger on X1
- optical or electrical
Section
Two hardware formats
The Explomet™ 4 is available in two hardware configurations to fit laboratory and field operations.

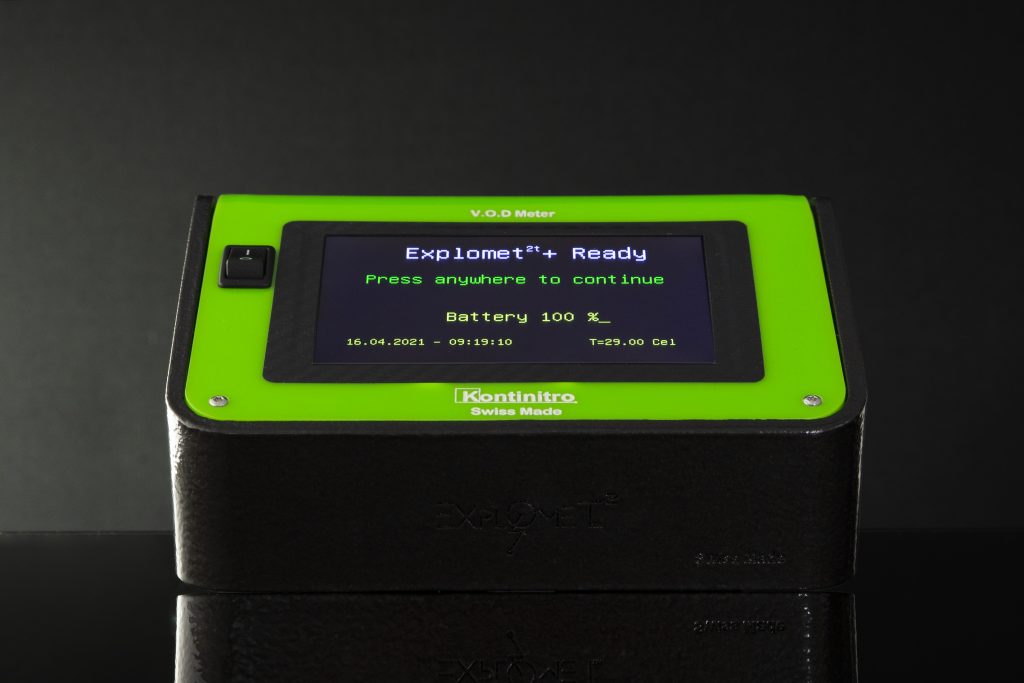

Portable format: compact aluminium housing based on the proven Explomet™ 2T+ platform, 6 optical inputs, lightweight and field-portable.
Suitcase format: rugged transport case in the spirit of the Explomet™ 3, 8 optical inputs, optional integrated thermal printer, designed for advanced testing and demanding field operations.
Section
Explomet™ 4 mode, velocity of detonation
The Explomet™ 4 mode measures time intervals between optical fiber inputs without requiring any predefined triggering sequence. It accepts between 2 and 6 optical inputs and records time intervals down to 0.01 microsecond.
Input position X1 can be triggered either optically through a fiber optic cable or electrically through a dedicated trigger input. Once the distances between optical positions are entered, the instrument automatically calculates the Velocity of Detonation in meters per second.
Typical applications include V.O.D measurement in explosive cartridges, V.O.D measurement in blast holes, bottom-to-top detonation verification, shock tube timing analysis and general explosive performance testing.
Section
Detomet 4 mode, detonator only
The Detomet 4 mode has been completely redesigned and integrated into the Explomet™ 4 platform. Input X1 starts five independent counters simultaneously, while five optical inputs stop each counter individually.
Measurements are displayed in milliseconds with a reading resolution down to the microsecond.
Typical applications include electric detonator delay measurements, shock tube detonator delay measurements, surface delay measurements on blast fields, analysis of firing sequences and delay verification between successive explosions.
Section
Three software configurations
The instrument is available in three software configurations to match each operational profile: Explomet™ 4 (V.O.D measurement only), Detomet 4 (detonator delay measurement only) and Explomet 4+ (combined Explomet™ AND Detomet functionality on the same instrument).
Section
Slow combustion measurements
The Explomet™ 4 also incorporates a dedicated measurement system for slow-burning materials. Measurement durations of up to 3 minutes can be recorded with high accuracy.
Typical applications include propellants, powders, fuses, ignition systems, fuels and pyrotechnic materials.
Section
Data storage and security
All measurements are automatically stored on a removable SD card in CSV format and can be easily imported into Microsoft Excel, LibreOffice Calc, OpenOffice or any compatible data analysis software.
Each measurement is stored individually and integrated into a complete test history. For additional security, a duplicate copy is simultaneously saved to an internal memory card. In the event of SD card failure or loss, the complete measurement history can be restored.
For a quick field check, the instrument provides direct access to the last ten VOD readings—a maximum of 50 recorded measurements—without the need for a computer or external software.
Section
Multiligual user interface
The Explomet™ 4 user interface is available in seven languages: English, German, French, Spanish, Portuguese, Italian and Polish.
Instrument views
Where is it used ?
Typical applications
-
Mining and quarries
Blast hole V.O.D measurement and rock fragmentation control.
View application -
Field testing
V.O.D. measurement in operational conditions
View application -
Energetic materials
Quality control for fuels, propellants, detonating cords and pyrotechnics.
View application -
Underground excavation and tunnels
Detonator delay control for trouble-free blast sequencing.
View application
FAQ
Common questions
Is the Explomet™ 4 available ?
Yes. The Explomet™ 4 is in production and available to order. Contact Kontinitro through the contact form for pricing, configuration advice and lead times.
Does the Explomet™ 4 replace the Detomet 2.0?
Yes. The Detomet 2.0 is End of Life and the redesigned Detomet functionality is now integrated into the Explomet™ 4 as the Detomet 4 mode. Documentation and support remain available for existing Detomet 2.0 customers.
What is the difference with the Explomet™ 3 ?
The Explomet™ 3 remains the field V.O.D instrument and is fully available. The Explomet 4 introduces two hardware formats (portable and suitcase), the new Detomet 4 mode for detonator delay measurement, a slow-combustion mode up to 3 minutes and a modernized data storage system.
How do I order the Explomet™ 4?
Get in touch with Kontinitro through the contact form. We will confirm the configuration that fits your application, send you a quote and arrange delivery.
