High capacity
High Capacity Systems
Detomet 2.0 and Explomet 2, 20 to 30 channels.

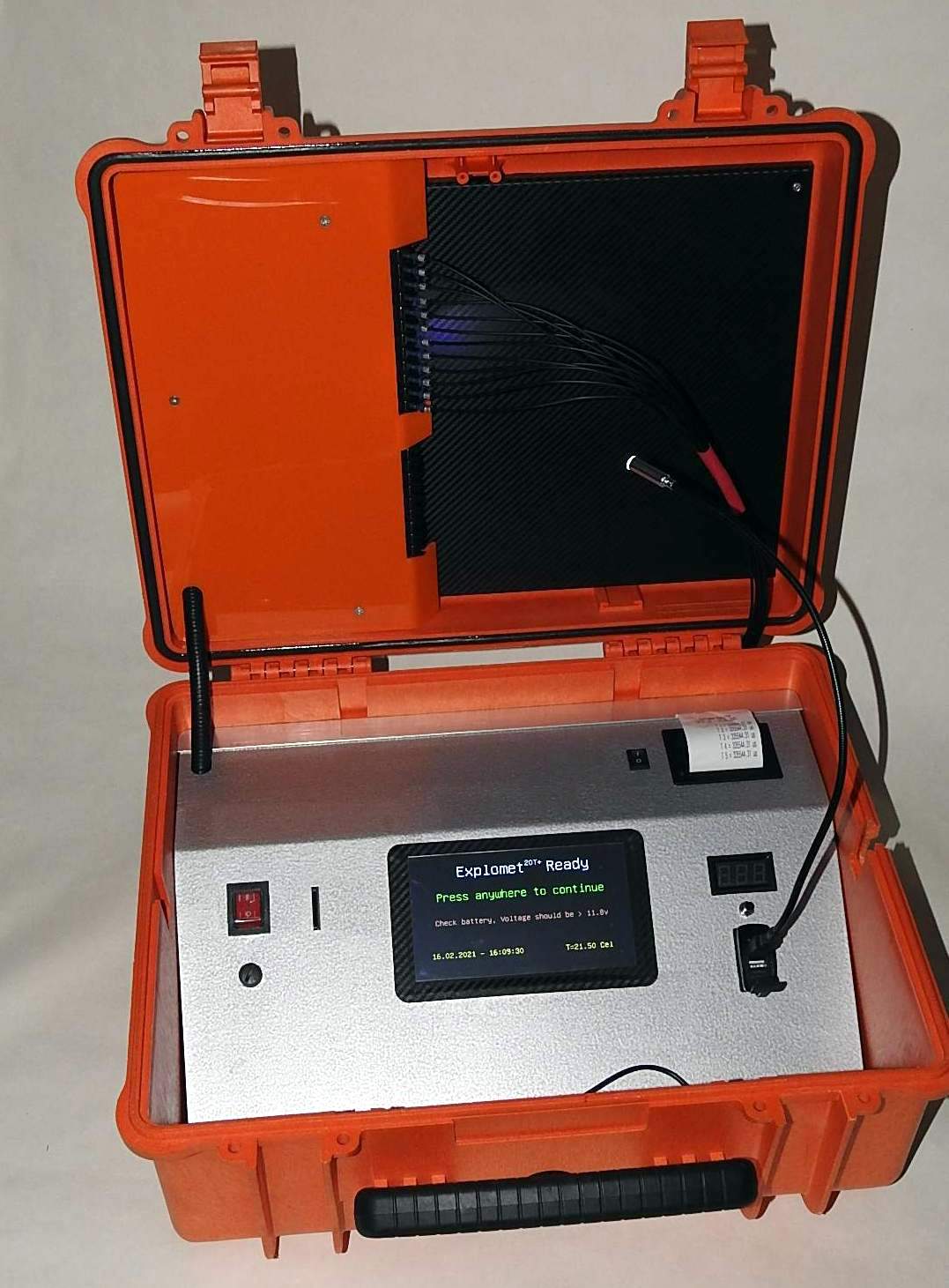

An extension of the Explomet 2 series and the Detomet 2.0, the high capacity systems are designed to measure simultaneously a large amount of samples, integrated in a heavy duty transport case with a stainless steel control panel.
- ·Capacity of 20, 24 or 30 channels
- ·High accuracy of ±0.01 microseconds, time base insensitive to temperature
- ·No calibration needed
- ·Optional results printed on paper
- ·All results saved on SD card
- ·Heavy duty transport case
- ·The case can remain closed during measurement
- ·Very long life battery with integrated 110 to 240 V charger
Section
Detomet 2.0, 20 to 30 detonators
Depending on your choice, capacity of 20, 24 or 30 channels.
Specially designed to measure the delay time of non electric detonators. The Detomet 2.0 returns the delay of 1 to 30 detonators.
High accuracy of ±0.01 microseconds, with a time base insensitive to temperature. No calibration needed. Easy graphic display of preliminary results, configurable. Choice of results printed on paper. All results saved on SD card.
Integrated in a heavy duty transport case with a stainless steel control panel. The case can remain closed during measurement. Very long life battery with integrated charger, 110 to 240 V. Digital battery level indicator. USB adapter for charging additional devices, smartphone and similar.
Section
Explomet 2, 20 to 30 counters
Depending on your choice, 20, 24 or 30 capacity. Specially designed to measure the time interval between 2 points. The Explomet 2 returns the delay between 2 to 31 fibers.
High accuracy of ±0.01 microseconds, with a time base insensitive to temperature. No calibration needed. Choice of results printed on paper. All results saved on SD card.
Integrated in a heavy duty transport case with a stainless steel control panel. The case can remain closed during measurement. Very long life battery with integrated charger, 110 to 240 V. Digital battery level indicator. USB adapter for charging additional devices.
Section
Use and operation

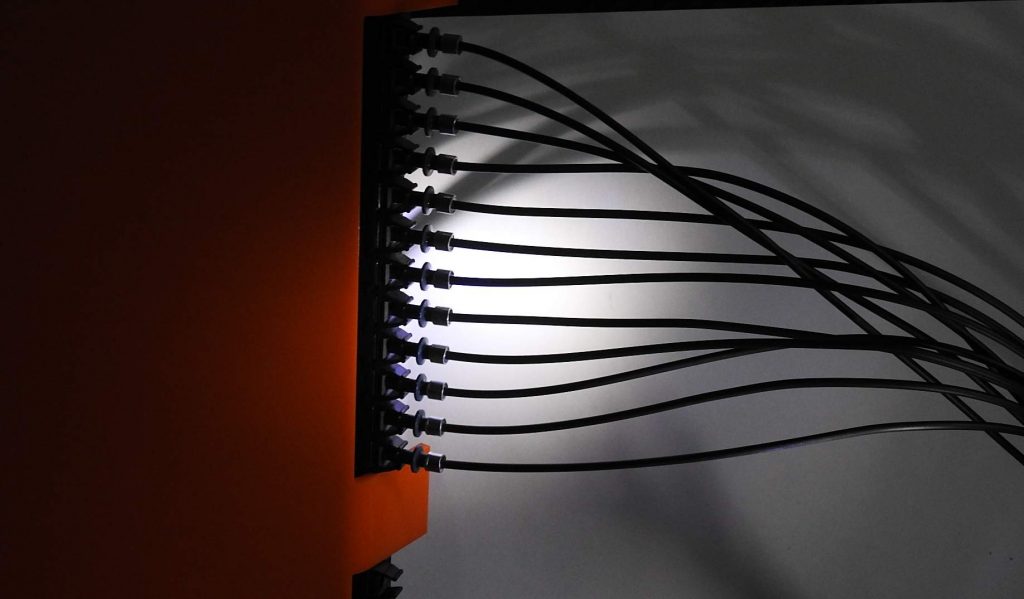

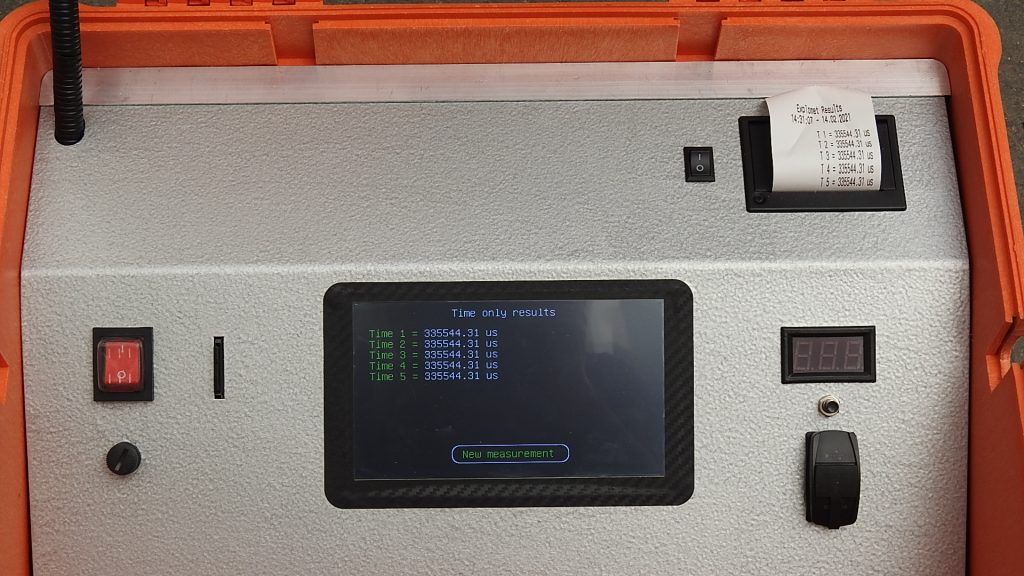

Based on the same fiber optic technology as the Explomet 2 series and the Detomet 2.0, these products extend the range to measure many samples simultaneously. Easy to use. Large 7.0 inch touchscreen. The device is available for right handed or left handed users, to be specified when ordering. Connection of the fibers under the cover is easy due to the angle of the connectors. A LED lamp is included for darkness.

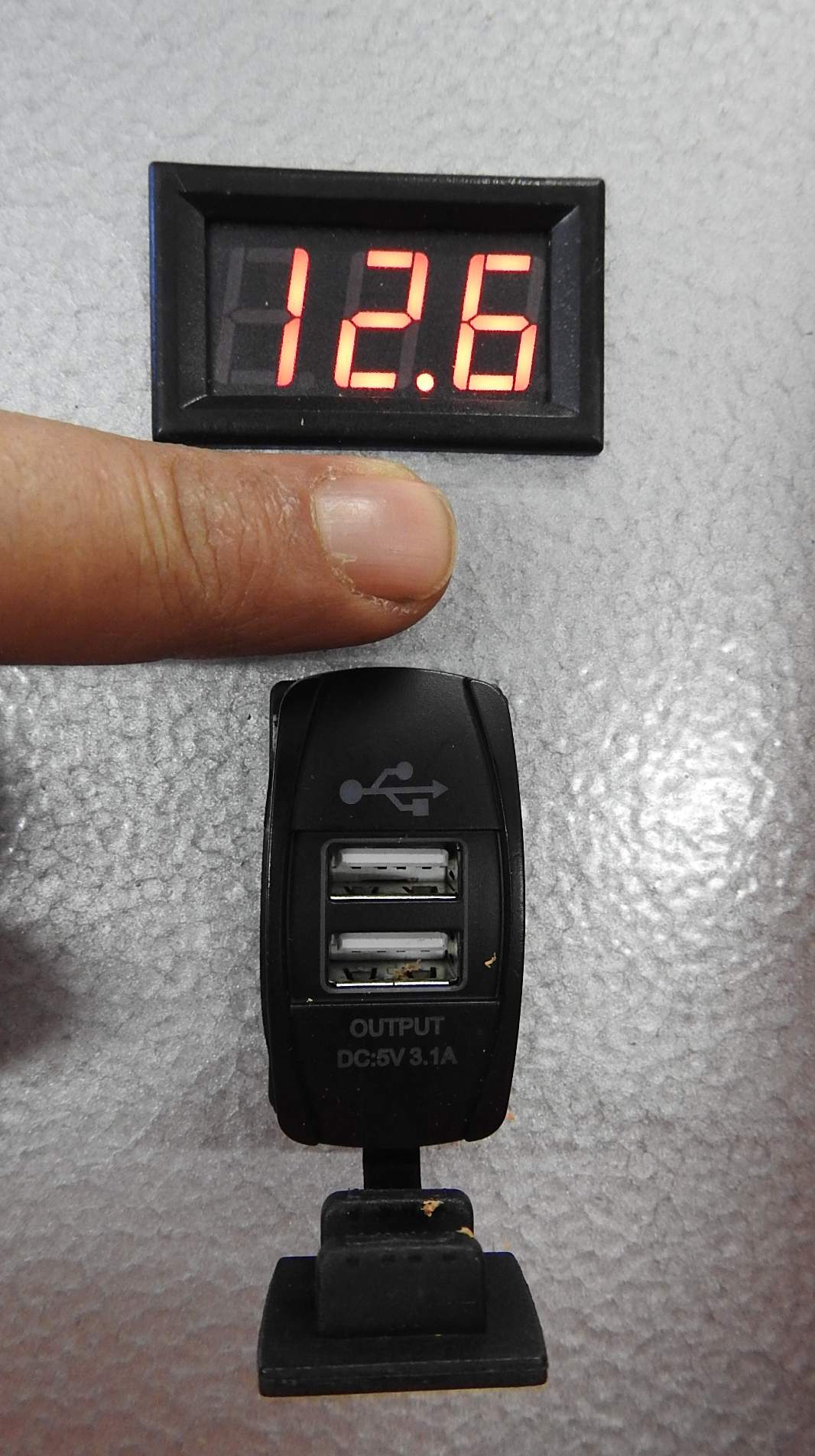

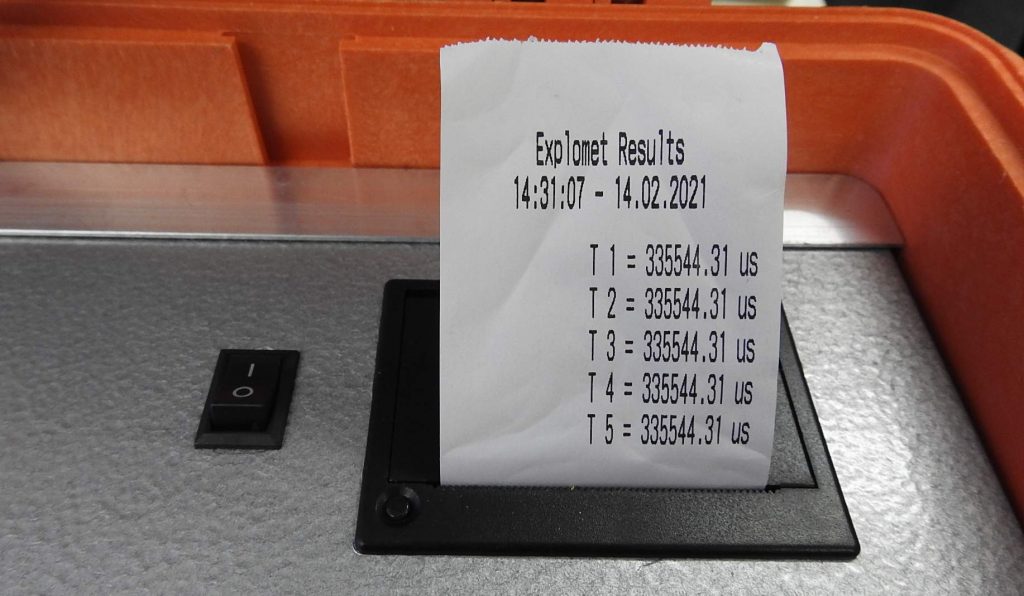

Performances of these 2 products are the same as the Explomet 2T+ and the Detomet 2.0. We add a long life battery with an integrated 110 to 240 V charger. A printer selectable via a switch can print the results. A voltmeter displays the charge of the battery, triggered by a switch. A dual USB adapter is available for charging external devices, smartphone, tablet and similar.
Where it is used
Typical applications
Instrument views
Documentation
Manuals
FAQ
Common questions
How many channels are available?+
20, 24 or 30 channels, selectable depending on the model. The Detomet High Capacity returns the delay of 1 to 30 detonators per measurement; the Explomet High Capacity returns the delay between 2 to 31 fibers.
Can the case stay closed during measurement?+
Yes. The heavy duty transport case is designed so that the instrument is fully operated through the stainless steel control panel with the case closed.
Is the system battery powered?+
Yes, a very long life battery is integrated, with a built in 110 to 240 V charger and a digital battery level indicator. A dual USB adapter is available to charge external devices on site.
Are results printed on site?+
An integrated printer is selectable via a switch and can print results on paper directly in the field, in addition to the standard SD card storage.
